V-port valve (V100 type)


Valves suitable for lines with abrasive fluids,
highly viscous fluids, etc.
Excellent performance in heat resistance,
wear resistance, and flow control.

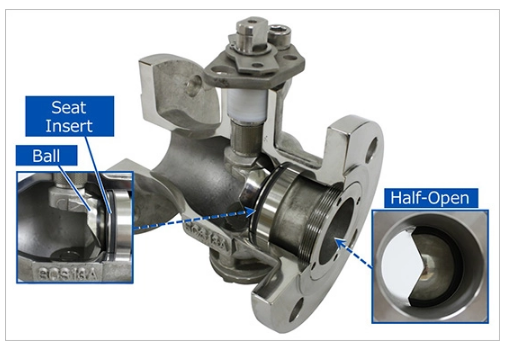

Structure and Features of V-Port Valve (V100 type)


①V-cut ball


Since the opening side of the hemispherical ball is cut into a V-shape, it has the effect of cutting fiber and solid matter.


Stellite is also applied to the sealing surface of the ball, and it is lapped, so it has excellent abrasion resistance (hard chrome plating is applied for the soft seat).


②Pocketless structure

The valve seat exists at primary surface only, so fluid will not accumulate in the valve flow path or become clogged between the ball and the body.
Also, this primary side seal structure does not cause abnormal pressure rise.(There exist restrictions on the flow direction. Details are here.)

③Seat with excellent heat resistance and wear resistance

The seat combines rigidity and flexibility to seal from vacuum to high pressure due to the effect of temperature and pressure difference. Metal seats allow use up to high temperatures.
It is also wear-resistant against abrasive fluids such as slurry and powder.

④Stable bearing function

Specially reinforced PTFE is used for the radial bearings of the stem and trunnion. Therefore, the operating torque is low and it can withstand high frequency operation.

⑤Gland packing with excellent sealing performance

V-packing provides complete sealing from vacuum to high pressure (V100ND type).

⑥Integrated body

Since the valve body is integrated, there is no fluctuation of valve torque due to piping stress, deterioration of sealing performance, or external leakage.

⑦Full flow

When the valve is fully open, the valve body is almost straight without obstructing the flow, so the pressure loss is small. In addition, it is possible to smoothly pass slurry, etc., which makes it difficult to cause fluid clogging and cavitation.

⑧Excel in flow regulation

Since the ball is V-cut, the rangeability is high and the flow rate control performance is excellent.
The specific flow characteristics are nearly equal percent.

Applicable field

Paper mills (pulp liquid, etc.), slurries (iron oxide, mud, lime milk, etc.), powders (fly ash, resin pellets such as nylon, etc.), highly viscous fluids, etc.

Manual Valves
V100ND type
Pneumatically Operated ON-OFF Valve
(double acting)
VPN1100ND type
Pneumatically Operated Control Valve
VPN3100ND type
Electrically Operated Valve
VMSJ4100NC type


Body specifications

Body material

V100ND type (DN25-100) stainless-steel cast steel: SCS13A(CF8), SCS14A(CF8M)

V100NC type (DN125-200) Stainless Steel Cast Steel: SCS13, SCS14

Connection method

Flanged JIS10K, 20K(*1) CL(ASME, JPI)150, 300(*2)


・FCD products are also manufactured, so please contact us when you consider introducing them.
・We have manufactured DN20 and DN250 or higher, so please contact us when you consider introducing them.
*1:JIS B2220 *2:ASME B16.5



Seat specifications

Seat material

CF (reinforced PTFE containing carbon fiber), M (thin seat: SUS316H), ST (thick seat: SUS316)


*Not compatible with 2-way ball valve (F100NB type) seats.

Please refer to the catalog, drawings, etc. or contact our sales representative for the details.
